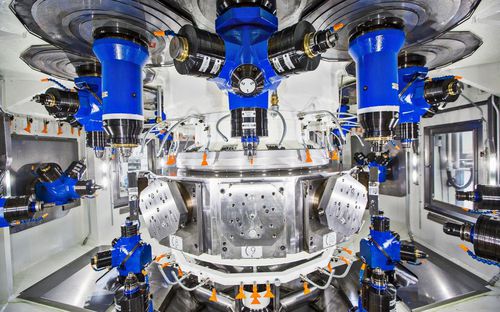

Rotary transfer machine TFL 400

CNC12-positionwith rotary table

The TFL 400 Flexible Transfer Machine combines the features of the Traditional Transfer Machine with an high level of flexibility, conveyed by the revolving tool holders. As the worked parts rotate, the TFL 400 Machine is not only flexible but also easy to reconvert, being capable to shape parts of different dimensions pertaining to the same family as well as pieces completely different from one another. In addition to the traditional fixed units, the rotating jaws and the rotating self-centering chucks can be combined with machining centres and tool changing turrets with a number of positions that ranges from 3 to 8. When doing so, they become machining cells perfectly stackable on machining centres, thus rendering the production costs much more competitive. The main features are the capability to machine an infinite number of shapes in one single locking, while working in one hermetically enclosed area with wide windows which ensure maximum access to the tools and clamping fixtures.
