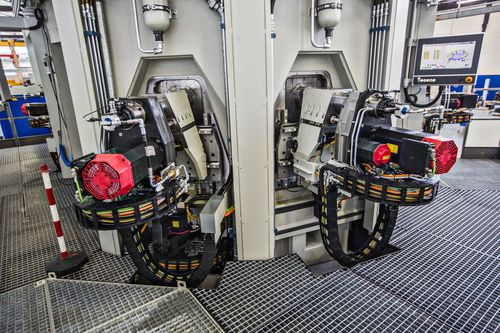

3-axis CNC machining center

vertical8 tools

Riello has developed for its Rotary Table Transfer machines also a wide range of Machining Centers, flange mounted to the frame in the same way of Riello Units. Their employ depends on the machine configuration and on the involved working process. They can be equipped with single tool or 2 thru 8-position Tool Change Revolver head. They can have different strokes on the three working axes, depending on their application : from ± 50 mm. of the CTR (mu ??), up to 450mm for X,Y axes and 320mm for Z axis. FACING HEADS CONTROL DEVICES To employ a fully CNC facing head (Riello or Komet brand) each unit can be equipped with an on-purpose Control Group. The Riello groups allow to control also fully CNC facing head mounted on Tool Change Revolver. If required. the thru-spindle coolant version is also available.
