Transfer machine numerical control

touch screen

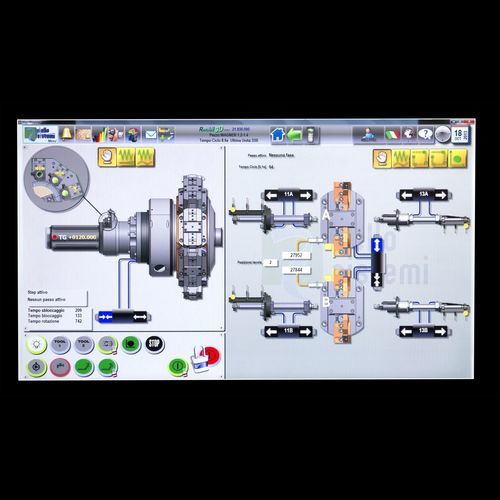

Riello User Interface is the user interface developed by Riello which is provided in all types of machines. Thanks to this solution, the user does not have to worry about the CNC controlling the machine at that moment. The last generation of Riello User Interface us called " 3D". 21,5" monitor touch screen to manage more confortable all the machine functions: unit selection, editing part program, tool managingi, origine, teleservice, production data and many others. TOOL MONITOR Riello Tool Monitor works by monitoring the spindle motors absorption, through a direct reading inside the drives and thanks to an on-purpose developed SW. Management of pre-alarms levels and of missïng tool alarms. Teach-in function. Possibility of sélection via RUI interface. IN PROCESS CONTROL DEVICES In-process gauging device for one or more dimensions, with retro action and dimensional correction of machining oerations made in the previous station. Device installed on a fully CNC Riello control group.
