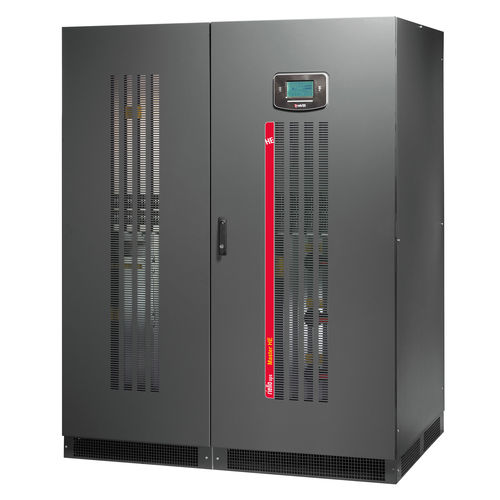

On-line UPS Master HE

double-conversionthree-phaseVRLA

The Master HE series from 100 to 800 kVA are the Riello UPS solution for installations requiring high energy efficiency and maximum power availability. Master HE Series provides maximum protection and power quality for data centres and industrial loads. The UPS has an IGBT-based rectifier, DSP (Digital Signal Processor) technology and provides true-line, double conversion power protection, (VFI SS 11 - Voltage and Frequency Independent in accordance with IEC EN 62040-3). Master HE series is available from 100 to 800 kVA. The UPS features a new ON LINE double-conversion technology utilising IGBT and DSP (Digital Signal Processor) control to provide maximum protection, power quality and green energy for any type of application including data centres, disaster recover sites, telecoms rooms, industrial processes and security applications. High efficiency stands for higher active power available if compared with legacy UPS thanks to output unitary power factor (up to +25% if compared unity with same UPS at p.f. 0.8). Nominal power is granted with no downgrading independently from operating temperature in the range 10-40 °C. Furthermore, control circuits and specifically designed firmware grant outstanding ON LINE double conversion efficiency up to 95.5%, comparable with the best transformer-free UPS available on the market. Zero Impact Source Master HE series UPS have zero impact on the power supply source, whether it is a mains grid or generator set: input current distortion <3%; input power factor 0.99; power walk-in function that ensures progressive rectifier start up;
