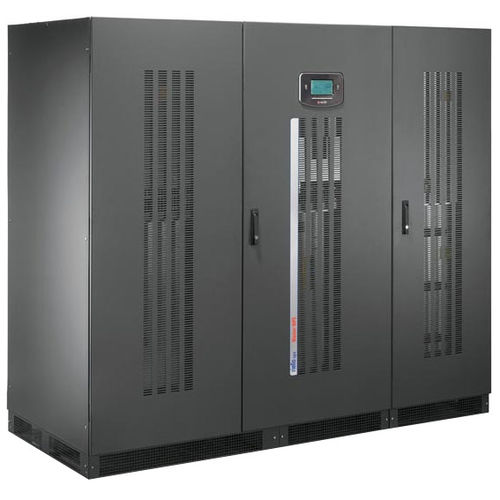

On-line UPS Master MPS

double-conversionsingle-phasethree-phase

Master MPS series UPS devices ensure maximum protection and power quality for any type of load, especially for mission critical applications, data centres, security systems and electro-medical equipment, industrial processes and telecommunications. Master Plus is an ON LINE double conversion UPS (class VFI SS 111 in accordance with IEC EN 62040-3) with a transformer isolated inverter. Easy source Master MPS makes powering UPS devices by power generators and MV/LV transformers easier and more efficient, reducing loss in systems and coils, correcting the power factor and eliminating harmonics by the loads powered by the UPS itself. In addition to this, the progressive start-up of the rectifier and the possibility of reducing the recharge current of the batteries, allow for the containment of the input current absorbed and therefore do not overload the source, especially when the source is a generator. Battery Care SYSTEM: maximum battery care Normally the batteries are kept charged by the rectifier; when mains power fails, the UPS uses this energy source to power its utilities. Therefore, proper battery care is critical to ensuring correct UPS operation in emergency conditions. Battery Care System consists of a series of features and capabilities that allow for battery management in order to obtain the best performance possible and extend their operating life. Master MPS is also compatible with different battery technologies: vented open lead acid, VRLA AGM, GEL, Ni-Cd, Flywheels, Supercaps and Lithium. Flexibility Master MPS is suited to all types of applications, from computers to the most demanding industrial environments.
