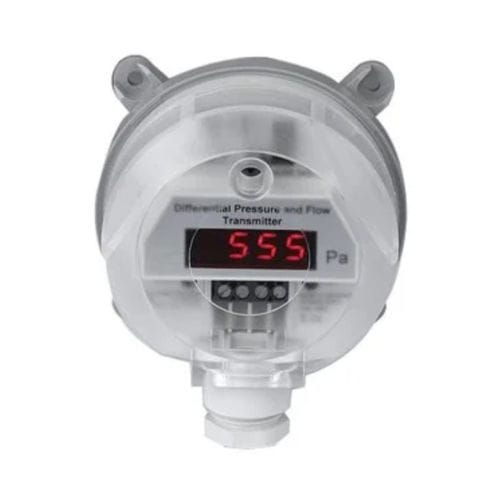

The RIB984 Differential Pressure Transmitter is used for the detection of the differential pressure of non-corrosive gases.
There are several possible areas of application:
air conditioning and room class, building automation, control of valves and shutters, monitoring of fluids and levels, control of air flow, transduction in voltage and current values.
Each pressure transmitter is configurable with two different differential pressure scales.
The transmitter is factory set on scale 1 by means of the "Range" jumper inserted.
To work with scale 2 simply remove the jumper inserted.
The response time can be configured using the "Response" jumper (the response time is 1 s from the factory, suitable for eliminating short pressure peaks).
PRODUCT FEATURES
Detection type - Continuous measurement
Measurable media - Air, Natural Gas
Programming method - Using jumper “Response"
Explosion protection - Safe zone
Pressure type - Differential
Measurement type - With contact
Sensor type - Piezoresistive silicon sensor
DETAILS OF THE SIGNAL INPUTS AND OUTPUTS
load resistance - 20...500 Ohm
REGISTRY FEATURES
Displayable units of measure - Kpa
ELECTRICAL DATA
Voltage type - 24 Vac/dc
Recovery battery - Not available
Reverse polarity protection - No
Datalogger - No
Max current consumption - 0,03 A
Communication protocol - N/D
Communication interface - None
Operating voltage -
MECHANICAL DATA
Process connection type - Nozzle
Diameter process connection - N/D
Materials in contact with the measured fluid - POM - Acetal resin
Seal materials - N/D
Body material - POM - Acetal resin
Height - 57,5 mm
Width - 65 mm
Depth - 118 mm
O-Ring - Without O-ring
Case material - ABS - Acrylonitrile butadiene styrene
