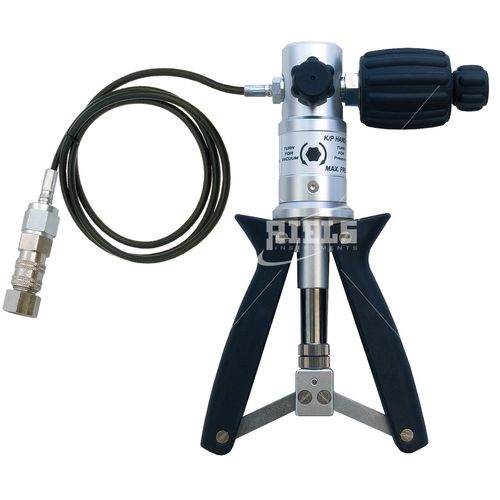

Pneumatic calibration pump K/P

manualfor pressure generationfor pressure and vacuum

With this pneumatic hand pump it is possible to generate negative pressures / pressure gaps and positive pressures up to 40 bar. With the fine adjustment valve (which is integrated into the pump) and the dump valve, the pressure calibration can be set up quickly and precisely. This hand pump is particularly suitable for testing pressure gauges and pressure transmitters. The reference instrument to accurately measure the actual pressure is screwed directly onto the hand pump and is equipped, on request, with analogue or digital pressure gauges to be used as reference instruments for the generated signal. PRODUCT FEATURES Fluid for pressure generation - Oil/water MECHANICAL DATA Process connection type - Threaded GAS(F) Diameter process connection - 1/4" - DN6 LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D country of origin - Germany Customs Code - 90262000 Gross weight - 1,5 kg Net weight - 1,1 kg Packaging volume - 0,01 m³ Packing length - 40 cm Packaging width - 30 cm Packaging depth - 30 cm
