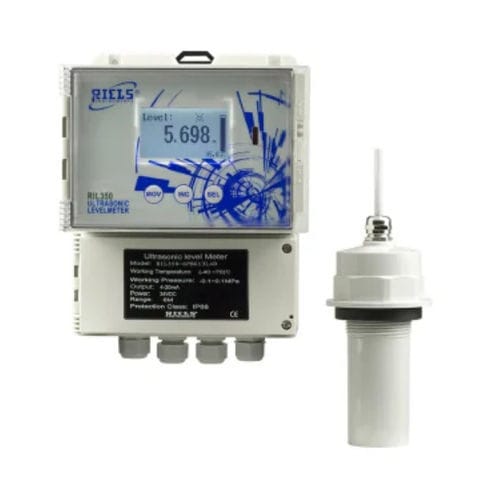

Ultrasonic level transmitter RIL350 series

for liquidsanalogRS-485

The RIL350 Ultrasonic Level Transmitter is appreciated thanks to its compact shape and quick connection via connector, the IP68 protection makes it suitable for outdoor applications with direct exposure to bad weather, including areas with danger of immersion (max 1m). Usually used for level measurements on tanks or open basins. The height of the level is calculated on the basis of the time that an ultrasonic pulse takes to travel the distance between the sensor and the surface of the medium. PRODUCT FEATURES Programming method - From keyboard Viewing Modes and signals - Using display Documentation included - English instructions manual Explosion protection - Safe zone Antenna type - Conical Mounting - From the top Measurement type - Without contact Integrated temperature sensor - Automatic temperature compensation Properties of the fluid - Viscous / Sticky, Presence of suspended solids REGISTRY FEATURES Displayable units of measure - % of level, Meter00 Display - Yes Display version - Separate version - wall mounting Display technology - LCD B/W Display details - Display languages - Italian, English ELECTRICAL DATA Type of electrical connection - Short cable gland PG11 Cable material - PU (PUR) - Polyurethane Reverse polarity protection - Yes Status LED - None Number of electrical contacts - 6 Operating voltage - Relay number - 6 relay MECHANICAL DATA Process connection type - Threaded GAS(M) Materials in contact with the measured fluid - ABS - Acrylonitrile butadiene styrene Seal materials - N/D Other housing materials - ABS - Acrylonitrile butadiene styrene Body material - ABS - Acrylonitrile butadiene styrene
