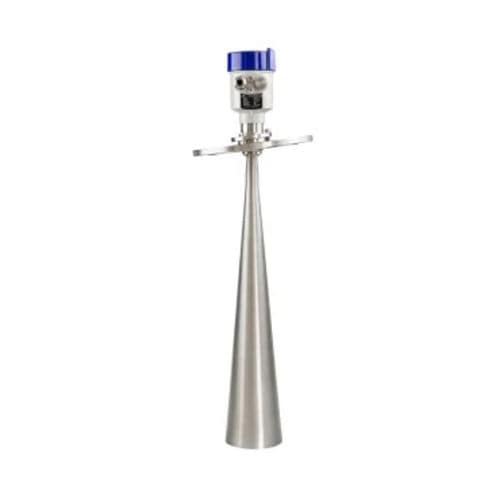

Radar level transmitter RIL410

for solidsHARTfor silos

RIL410 is a Radar Level Transmitter for continuous monitoring of solids in silos, including those with extreme process conditions with the presence of dust (cement, plastic / pellets, cereals, coal, wood dust, fly ash) and high temperatures (up to at 250°C). The RIL410 Radar Level Transmitter includes an optional graphical interface in the Local Display (LDI), which improves configuration and operation via an intuitive quick start wizard and has echo diagnostic support. Start-up is easy using the "quick start" wizard which allows basic operation by entering a few parameters. RIL410 measures virtually any solid material up to a distance of 70m. It has a unique design and simple and secure programming. PRODUCT FEATURES Informations measured - Level Detection type - Continuous measurement Measurable media - Solid powder, Granulates Programming method - From keyboard Viewing Modes and signals - Using display Documentation included - English instructions manual Explosion protection - Safe zone Antenna type - Conical Mounting - From the top Measurement site - Tank Measurement type - Without contact Integrated temperature sensor - None Properties of the fluid - Presence of suspended solids REGISTRY FEATURES Display - Yes Display version - Compact version Display technology - LCD B/W Touchscreen - No Display details - LCD display with level and distance measurement display with configuration menu. Display languages - English ELECTRICAL DATA Voltage type - 24 Vdc Type of electrical connection - M20x1.5 Reverse polarity protection - No Degree of protection - IP65 Status LED - None Max current consumption - 0,02 A Frequency of radar waves - 26 GHz Operating voltage - 18..36 Vdc
