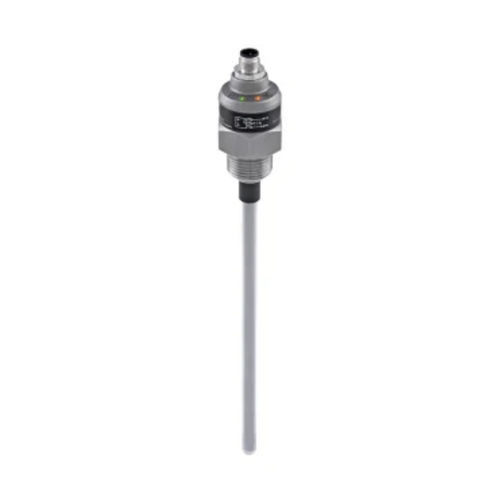

Capacitive level sensor RIL850-2X
for solidsfor liquids2-wire

capacitive level sensor
capacitive level sensor
capacitive level sensor
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for liquids, for solids
Interface
2-wire, NAMUR
Applications
for industrial applications, for storage tanks, for fill monitoring, for silos, for the pharmaceutical industry, for basin, high-temperature, for hazardous areas, for small access holes, for leak detection, for monitoring
Other characteristics
stainless steel, compact, maintenance-free, ATEX, intrinsically safe, IP67
Level range

Max.: 2,000 mm
(78.74 in)

Min.: 0 mm
(0 in)

Process pressure

50 bar
(725.19 psi)

Process temperature

Max.: 200 °C
(392 °F)

Min.: -20 °C
(-4 °F)

Description

RIL850-2X Series Capacitive Level Sensors are versatile devices designed for limit level monitoring of liquids and in a wide range of industrial applications. These sensors offer a wide range of distinctive features that make them ideal for precise monitoring of material levels in tanks, vessels, pipes. Configuring and setting the sensors is simplified through the use of a magnetic pen, which allows for quick installation without the need for fluid. Additionally, RIL850-2X sensors offer optical indication via two LEDs, which further simplifies level monitoring. The available versions are the following: Fully coated rod electrode for the detection of conductive liquids such as aqueous solutions, water, adhesives and aggressive materials, can be mounted in both horizontal and vertical positions. This electrode has FEP insulation. Alternatively, a variant is available with a fully coated rod electrode, but with PFA insulation, which offers greater resistance to vapor and gas permeation. This option is ideal for monitoring the level of water and other conductive liquids in the food, pharmaceutical and industrial chemical industries. It can also be used for high temperature applications, such as hot steam sanitation or aggressive volatile liquids. This can also be mounted both horizontally and vertically. Furthermore, there is another variant available that offers greater mechanical resistance at high temperatures and high pressures. This variant is particularly suitable for high-temperature applications such as hot steam. In summary, we have three fully coated rod electrode options for different needs: a standard one with FEP insulation,
