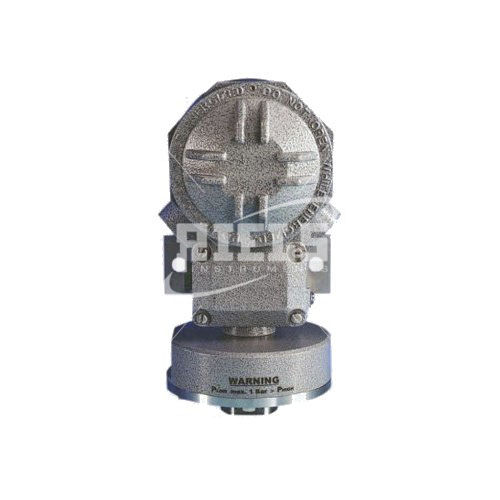

Diaphragm pressure switch RIBWD

adjustable pistondifferentialNC

The RIBWD diaphragm differential pressure switches are used in industry for the regulation and monitoring of filters and for level alarm systems in closed tanks. Used with both liquids and gases, they allow very accurate control (0.2% repeatability) of the trip value. Available with aluminum or 316 stainless steel housing in Atex explosion-proof execution for use in places with danger of explosion up to Zone 0. PRODUCT FEATURES Informations measured - Pressure Detection type - Switch Measurement site - Bypass, Conduct, Tank Measurement type - With contact Measurement site - Bypass, Conduct, Tank Measurement type - With contact Sensor type - Membrane switch Properties of the fluid - Aggressive Overpressure OMOLOGAZIONI Naval approvals - DNV-GL – Norway and Germany Food / pharmaceutical approvals - 3A, FDA Laws and regulations - SIL, SIL2 agr. IEC61508 EMC applied harmonized standards - EN 61326 (For industrial applications) CE omologation - Yes Low voltage applied harmonized standards - EN 61010-1: 2010 Rohs applied harmonized standards - EN IEC 63000:2018 Atex details - Esecuzione antideflagrante II2 G/D ATEX Eexd IIC T6 LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D country of origin - Netherlands Customs Code - 90322000 Gross weight - 6,1 kg Net weight - 5 kg Packaging volume - 0,009 m³ Packing length - 40 cm Packaging width - 27 cm Packaging depth - 16 cm
