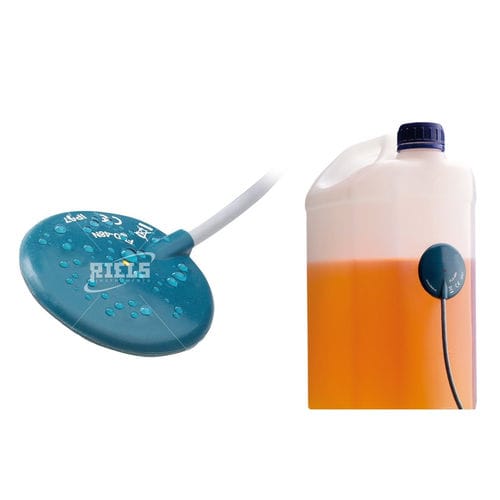

Conductive level switch RIL720 series

electro-opticalfor liquidsfor non-conductive vessels

RIL720 Level Sensors are designed to indicate the presence of conductive or non-conductive liquids in glass or plastic containers. Sensitivity and switching mode can be set simply by using the "programming" wire or the magnetic pen, depending on the type of sensor used. Configuration via "programming" cable or magnetic pen. LED status indication. The sensor is equipped with high-frequency technology, which allows reliable operation even in the case of adherent conductive fluids. Fixing by means of a self-adhesive layer or special fixing bands. PRODUCT FEATURES Detection type - Switch Measurable media - Hydraulic Oil (Synthetic), Water., (the indications on liquids are indicative and vary with the configuration of the product) Programming method - Magnetic pen Documentation included - English instructions manual Explosion protection - Safe zone Mounting - On the side Measurement site - Tank Measurement type - With contact Control points number - 1 DETAILS OF THE SIGNAL INPUTS AND OUTPUTS Signal Output Type - Electrical switch Details of the signal outputs - It is possible to program the electrical contact as normally open or normally closed Switchable voltage - 24 Vdc Output details - NO contact with 2 wires (3 wires if programmable version with cable) ELECTRICAL DATA Voltage type - 24 Vdc Type of electrical connection - Cable Cable material - PU (PUR) - Polyurethane Reverse polarity protection - No Status LED - Fluid touched Length of the connecting cable - 5 m Max current consumption - 0,6 mA Cable details - PUR 3 x 0.14 mm² Electrical switch - SPST - closed in the presence of liquid Number of electrical contacts - 1 Operating voltage - Output state - Normally open
