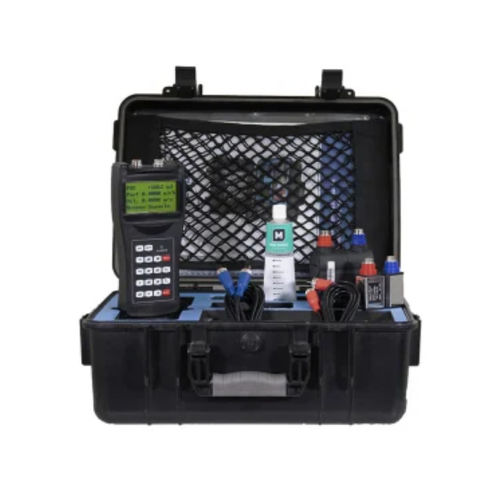

Ultrasonic flow meter RIF600P

volumefor liquidsDN50 - 2"

The RIF600P is a tool that combines the fluid velocity measured by the principle of ultrasonics from the CLS600 probes and the diameter of the pipe to obtain flow and volume data. The physical principle behind the measurement is, by the CLS600 probes, the emission of ultrasonics that, by crossing the liquid, receive a reflection signal and are able to calculate the velocity of the medium. This instrument does not have any output for communicating with computer systems but it has a button for configuration and a data logger that can store up to 2000 lines of data. In addition, the RIF600P has a precision of ± 1.0%. The instrument is powered by three 1.2V batteries not included in the package. PRODUCT FEATURES Detection type - Continuous measurement Explosion protection - Safe zone Type of ultrasound probe - None DETAILS OF THE SIGNAL INPUTS AND OUTPUTS Signal Output Type - None REGISTRY FEATURES Displayable units of measure - Litre, m³, m³/h, L/min, Cubic feet [ft³], ft³/min, Gallons [Gal], L/s, L/h, Gal/h, °C, °F, m³/min, m³/s, m³/day, L/day, Gal/s, Gal/min, Gal/day, IGL/s, IGL/min, IGL/h, IGL/day, Mg/s, Mg/min, Mg/h, Mg/day, ft³/s, ft³/ora, ft³/day, OB/s, OB/min, OB/h, OB/day, IB/s, IB/min, IB/h, IB/day, Imperial gallons [IGL], Millions of gallons [Mg], US oil barrels [OB], UK oil barrels [IB] Display - Yes Display version - Electronic Display technology - LCD B/W Touchscreen - No Display details - The first line of the viewer displays information about the instrument. Number of lines that can be displayed - 4 Register functions, line 1 - Volumetric flow Register functions, line 2 - Fluid speed Register functions, line 3 - Cumulative volume (resettable)
