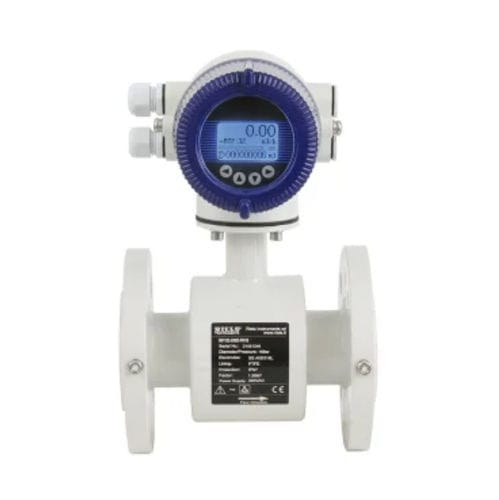

Electromagnetic flow meter RIF105

volumefor chemicalssuspended

The RIF105 is an electromagnetic flow meter that utilizes Faraday's principle to measure the velocity of the liquid and convert it into a signal proportional to the flow. Among its advantages are good precision, with a maximum deviation of ±0.5% from the measured value, complete indifference to the viscosity of the fluid, minimal pressure loss, and the ability to measure foamy liquids and those with suspended solids. Electronic Flow Converter CV020 This represents the evolution of the standard CV010 converter. It can be supplied in the compact version connected directly to the body or in the separate version connected to the body with a special cable of minimum length 10 meters. The converter displays the instantaneous flow and has a positive totalizer, a negative one and a net totalizer. It is possible to set two minimum and maximum flow threshold alarms. Auxiliary functions: Empty tube: this alarm intervenes in the absence of liquid or when its conductivity is less than 20 µS/cm. Cut off alarm: intervenes when the flow reaches the cut off limit (low flow cut) set. Reverse flow alarm: intervenes when the flow measurement reverses direction. System alarm: intervenes in case of system anomalies such as problems with the coils or electrodes of the meter. Datalogger: the converter has a 32 GB micro SD card from which it is possible to download the stored data in CSV format. Bluetooth: this function allows you to read the meter data through an application downloadable on your mobile phone. Auto zero function: this function automatically performs the calibration of the zero flow point.
