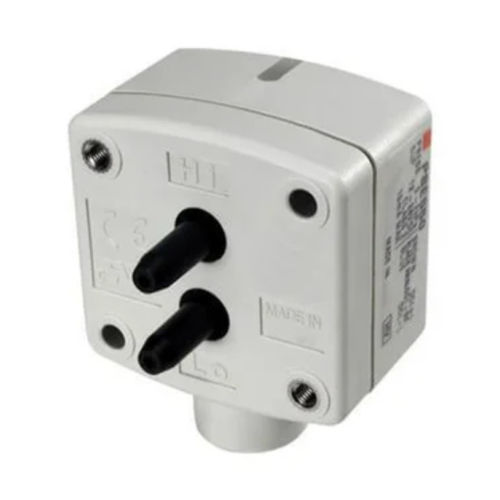

Relative pressure transmitter PSE550

differential4-20 mA1-5 V

PSE550 Differential Pressure Transmitters are mainly used as protection against too low pressure differences. These relative or differential pressure transmitters with respect to the atmosphere are used in all those applications where it is necessary to monitor non-corrosive air and gases. The sensor output signal is conditioned to provide an output current or output voltage linearly proportional to the applied differential pressure. The transmitters, calibrated in the factory, are ready for use. They are used for the monitoring of clean rooms, filter control, flow measurements (use with Pitot tube), machines for wrapping and packaging, ventilation control. PRODUCT FEATURES Viewing Modes and signals - Using signal output Explosion protection - Safe zone Relative humidity of the process environment - 85 %rh DETAILS OF THE SIGNAL INPUTS AND OUTPUTS Signal Output Type - Electrical switch REGISTRY FEATURES Display - No ELECTRICAL DATA Type of electrical connection - Cable Reverse polarity protection - No Status LED - On during emergencies MECHANICAL DATA Seal materials - N/D Other housing materials - N/D OMOLOGAZIONI Naval approvals - None Food / pharmaceutical approvals - None CE omologation - Yes LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D country of origin - Japan Packing length - 26 cm Packaging width - 21 cm Packaging depth - 13 cm
