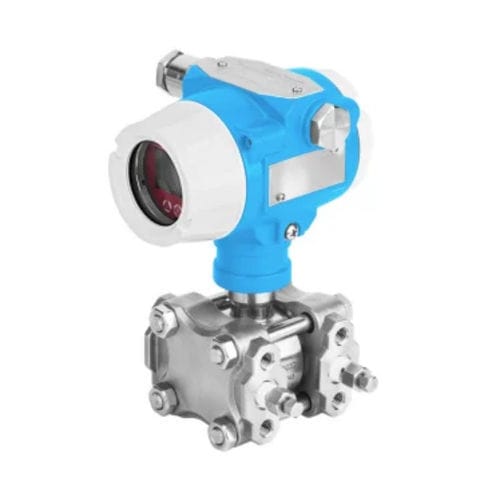

Relative pressure transmitter RIB250-DST

differentialthermal4-20 mA

The RIB250 Differential Pressure Transmitter is a high-performance differential pressure transmitter with cutting-edge international technology. It utilizes the world's most advanced monosilicon pressure sensor technology and a patented encapsulation technology. The monosilicon pressure sensor is located on the top of the metal body and is kept away from the medium interface to ensure mechanical and thermal isolation. The glass sintering sensor wire provides high-strength electrical insulation of the metal base and enhances the flexibility of the electronic circuit and transient voltage protection. All these original encapsulation technologies enable the RIB250 to easily handle extreme chemical situations and mechanical loads, and possess strong resistance to EMI, making it suitable for the most demanding industrial environment applications, which are truly invisible instruments. PRODUCT FEATURES Relative humidity of the process environment - 100 %rh Properties of the fluid - Aggressive Zero point calibration - Yes REGISTRY FEATURES Display - Yes Display technology - LCD B/W Touchscreen - No ELECTRICAL DATA Reverse polarity protection - No Status LED - None Max current consumption - 20,8 mA OMOLOGAZIONI Naval approvals - None Food / pharmaceutical approvals - None Atex approvals - None Laws and regulations - RoHS, Directive 2014/30/EU “Electromagnetic compatibility Directive”, ISO 9001-2015 directive CE omologation - Yes LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D Gross weight - 4,5 kg Net weight - 4 kg Packaging volume - 0,009 m³ Packing length - 26 cm Packaging width - 21 cm Packaging depth - 13 cm
