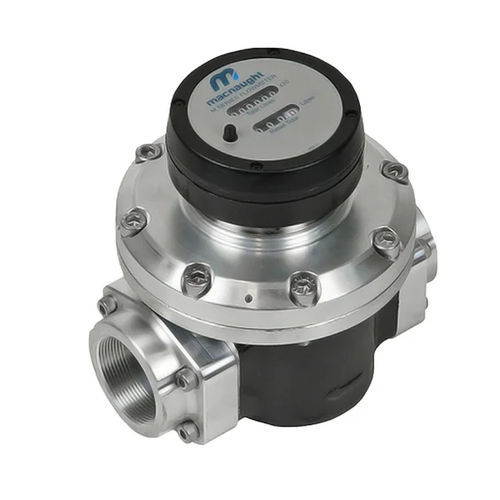

Oval gear flow meter FSM

for oilfor fuelDN50 - 2"

The FSM series flow meters do not come with signal outputs but allow for the visualization of cumulative volume through a mechanical display, which can be chosen in standard or Heavy Duty versions. Both versions of the displays feature two lines, one of which is resettable. This range of flow meters has the capability to install specially designed oval wheels for high viscosity liquids (above 1000 cps). These meters find application in three different areas: Industrial: with stainless steel body and PTFE seals. In the presence of solvents: with aluminum body and PTFE seals. In the presence of fuels and oils: with aluminum body and FKM seals. PRODUCT FEATURES Detection type - Continuous measurement Explosion protection - Safe zone Version - For fuels and oil Measurement type - With contact Sensor type - inductive Display and Outputs - No output DETAILS OF THE SIGNAL INPUTS AND OUTPUTS All signal outputs available - Pulses Signal Output Type - None Pulse factor - 112 imp/L REGISTRY FEATURES Display version - Mechanical Standard in Liters Display features - Standard 2 line mechanical display. First line: 6 digits, cumulative flow function, 10 liter pecision Second line: 4 digits, cumulative flow function, 1 liter precision with reset button. Number of lines that can be displayed - 2 Register functions, line 1 - Cumulative volume (non resettable) Register functions, line 2 - Cumulative volume (resettable) Maximum displayable value (line 1) - 9.999.990 l Maximum displayable value (line 2) - 9.999 l Minimum displayable value - 1 l Number of digits (line 1) - 6 Number of digits (line 2) - 4 ELECTRICAL DATA Reverse polarity protection - No
