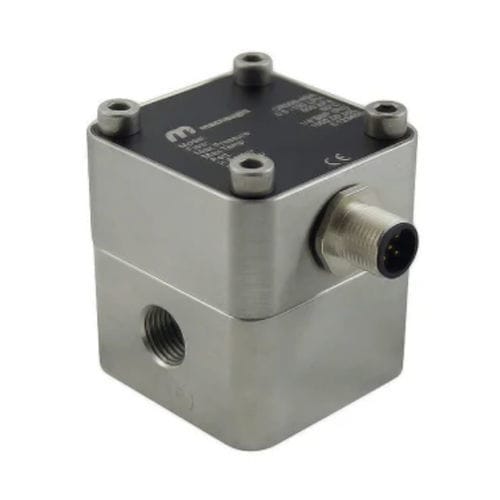

Oval gear flow meter FSM-SMALL

volumefor oilfor fuel

The FSM-SMALL can be configured with a built-in 1-meter cable or with a DIN connector. Furthermore, both options can be requested with 2 reed sensors or with one reed sensor and one hall-effect sensor. The accuracy, calibrated and certified for each product, is ±0.5%, while repeatability is ±0.03%. For flow meters up to 500 liters/hour, there is the possibility to install specially designed rotors for high viscosity liquids (over 1000 cps). Products in this range can be implemented in three configurations based on the reference applications: Industrial applications: 316L stainless steel body and FFKM seals. Chemical solvent applications: 6061-T6 aluminum body and FFKM seals. Fuel and petroleum applications: 6061-T6 aluminum body and FKM seals. PRODUCT FEATURES Detection type - Continuous measurement Explosion protection - Safe zone Version - For fuels and oil Measurement type - With contact Sensor type - inductive DETAILS OF THE SIGNAL INPUTS AND OUTPUTS All signal outputs available - Pulses Signal Output Type - Pulse/frequency Switchable voltage - 30 Vdc Pulse factor - 1000 imp/L Output details - 1 x Reed pulses + 1 x NPN Open collector Digital output functions - Portata Volumetrica Digital output type - REED Number of digital outputs - 1 Switchable current - 500 mA Maximum switching power - 10 W Second type of digital output - Open collector NPN Number of digital outputs of the second type - 1 Maximum output current from output N°2 - 25 mA ELECTRICAL DATA Type of electrical connection - Cable Reverse polarity protection - No Max current consumption - 507,5 mA Operating voltage - 4.5…30 Vdc for the Hall sensor and 30 Vdc for the Reed sensor
