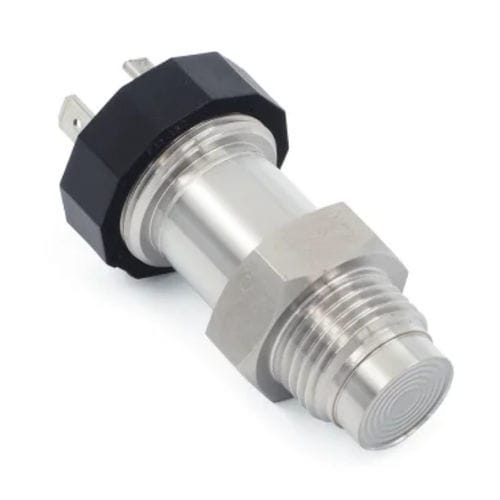

Relative pressure transmitter 25Y

membranesiliconpiezoresistive

Line 25Y Pressure Transmitters with flush membrane have a very low temperature error. This is achieved by an additional circuit that includes a temperature sensor that divides the temperature range into fields with a width of 1.5 Kelvin (K). For each field, the compensation values for zero TK and gain TK are calculated based on a mathematical model and programmed into the additional circuit. The 25Y series is characterized by its exceptional robustness against electromagnetic fields. The limit values of the CE standard for guided and sandblasted fields fall below Factor 10. PRODUCT FEATURES Detection type - Continuous measurement Measurement type - With contact Sensor type - Piezoresistive silicon sensor Construction/Structure - Facing membrane Properties of the fluid - Viscous / Sticky, Aggressive, Presence of suspended solids ELECTRICAL DATA Type of electrical connection - M12 connector Reverse polarity protection - No Max current consumption - 0,02 A Insulation resistance - >10 MΩ@300 V MECHANICAL DATA Height - 59,7 mm Width - 22 mm Depth - 22 mm PERFORMANCE DATA Initialization time - 5 s Response time - 5 s Cycles of measurement - > 10 million cycles, 0… 100% Full scale at 25°C OMOLOGAZIONI Naval approvals - None Food / pharmaceutical approvals - None Atex approvals - ATEX / Europe Laws and regulations - RoHS, Directive 2014/35/EU “Low voltage Directive”, Directive 2014/30/EU “Electromagnetic compatibility Directive”
