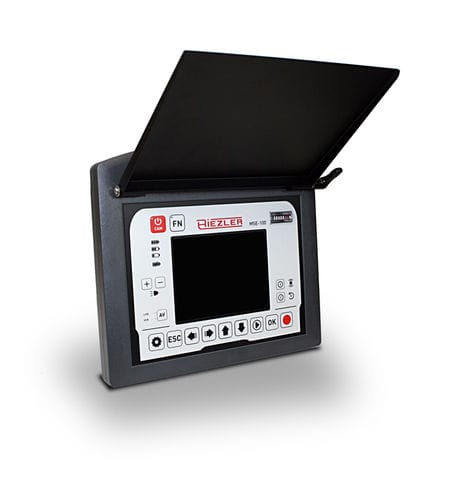

Inspection camera control unit MSE-100

Compact. Mobile. Modular. Our smallest control unit MSE-100 – Your central control and documentation unit for all our push cameras. The high resolution and daylight suitable 5.6 inch TFT display provides brilliant picture quality and together with the ergonomically located controls allows a pleasant work Videos and pictures are saved on a SD-Card (up to 32GB SD cards are supported) Compatible and expandable with all our cameras, reels and manual cable drums TECHNICAL DATA: Solid, shock-resistant housing with light shield Controls for camera and video recorder control Expandable for pan and tilt cameras by a hand held remote control High-resolution, bright 5.6-inch TFT display Integrated MPEG-4 Video Recorder (avi) with snapshot function (bmp) Digital meter counter with displaying in the video image Display of sensor values (pan and tilt angle in degrees, internal pressure in bar with alarm function) Li-Ion battery with a battery charger and charge indicator 12 V jack for car operation Interfaces: 1 x BNC Video IN, 1 x BNC Video OUT
