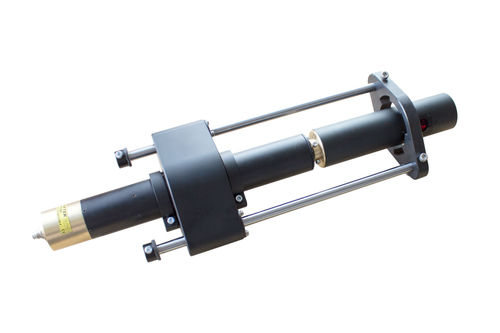

Boring diameter measuring gauge RF096-50/70-200-Clb

The laser measuring machine is intended for non-contact scanning and inner surface geometry measurement of wheel center bore. The gauge is used on alloy wheel production line as quality control tool. As a result of measurements the following geometric parameters are obtained: • inner diameter, • surface profile, • roundness. The device can be adapted for any similar hole (bore) measurement and control task. Measurement range 50...70 mm Accuracy ±5 µm Depth of measurement ≤200 mm Resolution 3200 point/turnover
