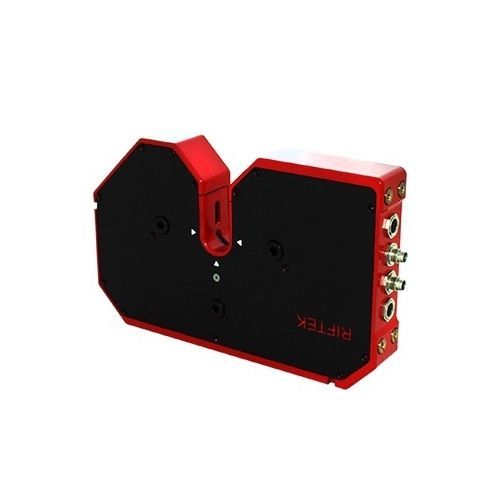

Optical micrometer RF656XY Series
laserscanningcomputerized

optical micrometer
optical micrometer
Add to favorites
Compare this product


Characteristics

Type
computerized, laser, optical, scanning
Measurement
external, thickness
Applications
professionnal, for tubes, for wire diameter, for cable diameter, for sheet metal, for gun barrel, for gears
Display
digital
Other characterisitcs
high-precision, high-speed, micro
Measuring range

Max.: 100 mm
(3.937 in)

Min.: 5 mm
(0.197 in)

Resolution

Max.: 5,000 µm
(0.19685 in)

Min.: 0.3 µm

Description

RF656XY Series - high precision two-axis micrometers 1D Optical micrometers use a “shadow” measurement principle whereby collimated laser light is transmitted towards a receiver. The edges of the shadow cast by an object in the beam’s path are accurately measured by the detector array inside the receiver unit. Optical Micrometers are non-contact devices that ideally measure diameters of wires, rods and other cylinders in addition to gaps, edge positions and dimensional characteristics of geometric objects.
