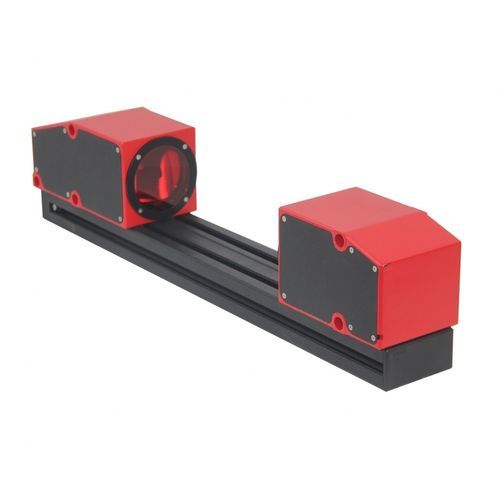

LED micrometer RF656.2D Serieslaserscanningcomputerized
Add to favorites
Compare this product
Characteristics
- Type
- computerized, laser, LED, scanning
- Measurement
- thickness, depth
- Applications
- large-diameter, thread, professionnal, for tubes, for wire diameter, for cable diameter
- Display
- digital
- Other characterisitcs
- precision, wireless data transfer, high-precision, non-contact, micro
- Measuring range
Max.: 40 mm
(1.575 in)Min.: 8 mm
(0.315 in)- Resolution
Max.: 4.5 µm
Min.: 1.5 µm
Description
RF657.2D Series
2D Optical micrometers are designed for non-contact inline two-dimensional batch measurements of linear dimensions, diameters, angles, thread parameters, part shapes, run-out, etc.
Optical micrometers use a “shadow” measurement principle whereby collimated laser light is transmitted towards a receiver.
The edges of the shadow cast by an object in the beam’s path are accurately measured by the detector array inside the receiver unit.
VIDEO
