Diameter measurement system RF096-440/1440-2000 Series

geometricopticallaser

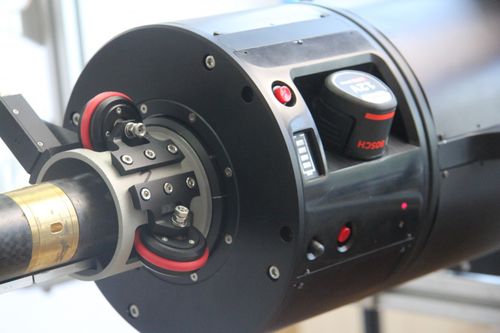

Large objects inner surface inspection machine The inner surface of the large objects is subject to wear during operation. To prevent accidents, periodic monitoring of the degree of wear is necessary. Until now, this kind of control is carried out with manual measuring instruments, but such measurements are very time-consuming, not technologically advanced and do not provide the required amount of reliable information. An automated laser system is designed for obtaining a complete 3D model of the inner surface large objects and wear calculation with high resolution and accuracy. nner diameter measurement range, mm: 440...1440 Inner diameter measurement error, mm: ±0.5 Scan resolution, points/turnover: 2008 Linear displacement error, mm: ±0.1 Maximum sampling frequency, Hz:9400
