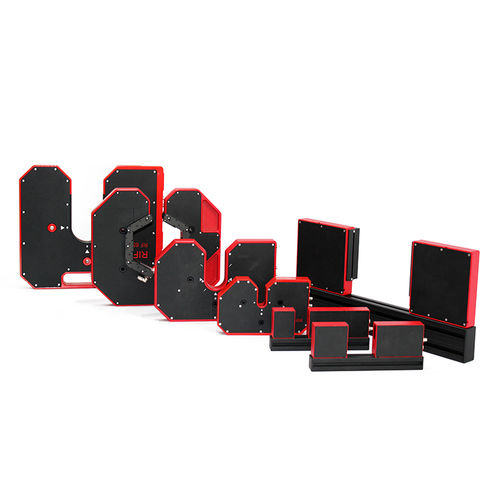

Optical micrometer RF651
laserinsidethickness

optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
optical micrometer
Add to favorites
Compare this product


Characteristics

Type
laser, optical
Measurement
inside, thickness
Applications
for wire diameter
Other characterisitcs
non-contact, CCD
Measuring range

25 mm, 50 mm, 75 mm, 100 mm
(0.984 in, 1.969 in, 2.953 in, 3.937 in)

Resolution

5 µm, 10 µm, 15 µm, 20 µm

Description

1D Optical micrometers use a “shadow” measurement principle whereby collimated laser light is transmitted towards a receiver. The edges of the shadow cast by an object in the beam’s path are accurately measured by the detector array inside the receiver unit. Optical Micrometers are non-contact devices that ideally measure diameters of wires, rods and other cylinders in addition to gaps, edge positions and dimensional characteristics of geometric objects. •direct through beam micrometers •long distance between transmitter and receiver
