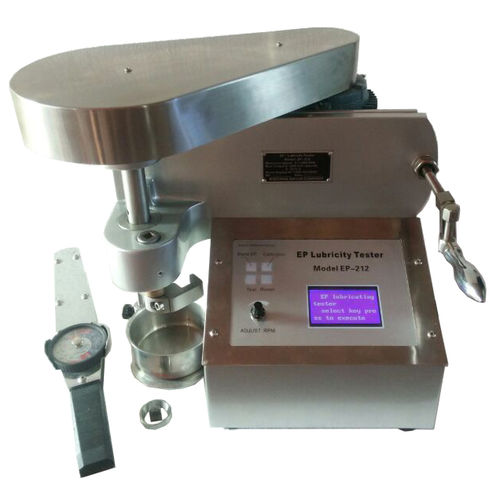

Lubricity tester EP-212

The lubricity test is designed to simulate the torque and drag produced by a given drilling fluid down-hole. The Model EP-212 Lubricity Tester is a high-quality instrument designed to measure the lubricating quality of drilling fluids, provide data to evaluate the type and quantity of lubricating additives that may be required, and predict wear rates of mechanical parts in known fluid systems. EP tests are performed by applying a measured force with a torque arm to a torque-sensitive, rotating bearing cup. This provides a means of testing lubrication under extreme pressure conditions and produces an indication of the film strength of the fluid being tested. The problem of reduction of friction between the drill string and the borehole requires a different simulation. The more common lubricity test measures fluid resistance (lubricating character) between two hardened steel moving surfaces at a hundred pounds force (which translates into a 5,000 to 10,000 psig (34,470 to 68,940 kPa) pressure on the intermediate fluid film). During the lubricity test, a steel block is pressed against a rotating steel ring. Load in inch-pounds is read directly from the dial on the torque arm. EP/Lubricity Tester capabilities: Measure the lubricating quality of drilling fluids Provide data to evaluate the type and quantity of lubricating additives that may be required Predict wear rates of mechanical parts in known fluid systems Measure of friction is a requirement for the determination of the film strength of a lubricant, for bit bearing wear, as is obtained in EP test and for the determination of torque or drag of the drill pipe as determined in the lubricity test.
