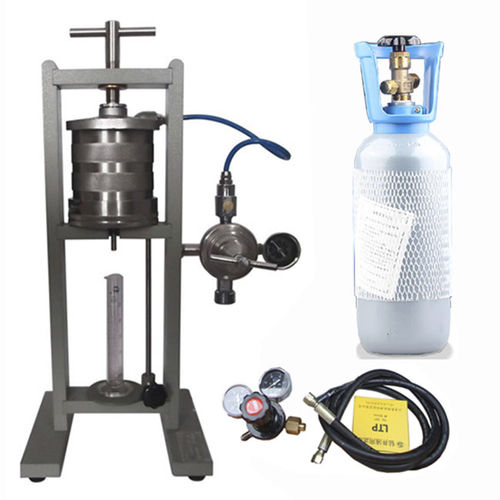

Laboratory filter press RCLF-3A

for sludge

API Low Pressure, Low Temperature (LPLT) Filter Presses are the most effective means of determining the filtration properties of drilling muds and cement slurries. Working pressure is 100 psig and the filtering area is 7.1-in2, as specified in the American Petroleum Institute, API Recommended Practice 13B-1 and 13B-2. Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of the filtrate, such as oil, water or emulsion content, are also fundamentally important. The types and quantities of solids in the fluid and their physical and chemical interactions affect these characteristics. Temperature and pressure in turn affect the physical and chemical interactions. It is therefore necessary to run tests at both low-pressure/low-temperature and high-pressure/high-temperature. Each of these testing conditions requires different equipment and techniques Multiple Unit Filter Press Multiple Unit Filter Press assemblies permit simultaneous running of one to six filtration tests. Each one of the assemblies consists of a frame with the indicated number of complete Stainless Steel filter cells. Manifolds are complete with air hoses, cut-offs and bleeder valves. Accessories such as pressure regulators and hoses for connection to pressurization source are sold separately.
