Reliable, accurate, wireline-type weight indicator protects downhole tool investment

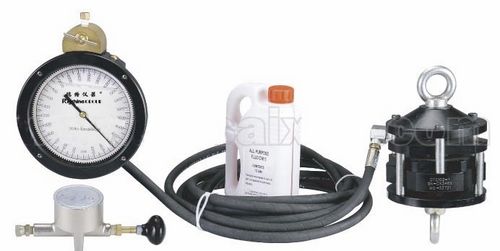

RIGCHINA Single Line Weight Indicator systems provide accurate measurement of downhole tool weights during wireline operations and heel or floor block applications. Ideal for use by wireline service trucks, each hydraulically-operated system includes a Tension Load Cell and a Gauge, connected by a Hydraulic Hose.
FEATURES:
-Easy to read 6” fluid filled gauge with dial faces available in decanewtons, pounds, kilograms, or dual scale.
-Damper system allows operator to increase or decrease sentivity easily to monitor the minutest changes.
-Each system is calibrated in our factory and is shipped precharged and ready to use.
-Heavy-duty hydraulic hoses, available in lengths of 50, 75, and 100 feet.
-Calibration and line pull certificates are sent with the system.
-Available in the following capacities: 1000, 2000, 3000, 4000, 5000, 6000, and 10,000 pounds.
BENEFITS
Calibration to ± 0.5% accuracy ensures reliable readings, reducing loss of valuable downhole tools.
Rugged design for operation in extreme environments, within ambient temperatures of -29° to 49° C (-20° to 120° F).
Available in a variety of capacities and line lengths, giving you the flexibility to choose the right solution for any job.
Operator-adjustable pointer response time and calibration controls for custom onsite adjustment.
Offers years of cost-effective, low maintenance service. Routine repairs can be performed by the operator.
