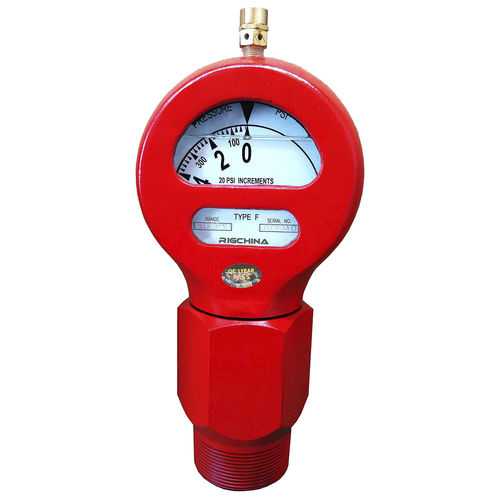

Sludge pump pressure gauge F6

dialdiaphragmrugged

Standpipe Mud Pump Pressure Gauges Rugged standpipe-type gauges provide dependable, accurate pressure readings RIGCHINA Stand Pipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure. Model F Gauge for capacities up to 20,000 PSI Model D Gauge for capacities up to 6,000 PSI Type F Pressure Gauge (Model 6) Model F Gauge(Model 6) for capacities up to 20,000 PSI Features: Diameter: 4-7/8" Height: 9-7/8" 7MPa,14MPa,21MPa,25MPa,35MPa,40MPa,60MPa,80MPa,100MPa,120MPa and 160MPa 1,000 PSI,1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI,15,000 PSI and 20,000PSI 70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar,1,040 Bar and 1,400 Bar Temperature range: -50°F to 180°F Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock Heavy duty seals create watertight barrier around gauge mechanism Combination threaded male 2" line pipe and threaded female 1" line pipe connection Type D Pressure Gauge Model D Gauge for capacities up to 6,000 PSI Features: Standard capacities of: 1,000 p.s.i., 3,000 p.s.i. 5,000 p.s.i and 6,000 p.s.i. 70 Bar, 210 Bar 350 and 420 Bar * 2" Nutted version available Diameter: 7-7/8" Height: 14-3/4" Temperature range: -50°F to 180°F Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock Heavy duty seals create watertight barrier around gauge mechanism Impact resistant, clear polymer lens Connects with threaded female 2" line pipe
