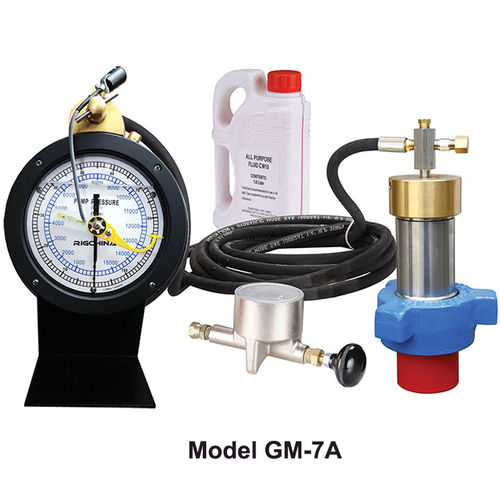

Dual-scale pressure gauge GM-7

diaphragm

E-17 DIAPHRAGM PROTECTOR Protects measuring or recording device from working fluid while transmitting no-lag, linear pressure signal. Rugged workhorse sensor found in every corner of the world doing every conceivable pressure sensing job. Robust, time proven design allows easy field repair and maintenance. Available in flanged, threaded, and weld on female sub configurations. Certified models available E-17 Diaphragm Protector. Standard Capacities include: 3,000, 5,000, 6,000, 10,000, and 15,000 psi 210, 350, 420, 700, and 1,000 kg/cm 2 10K, 21K, 42K, 70K, 80K 21, 35, 42, 70, 100 MPa DB1004A 4:1 DEBOOSTER The Debooster is a stepped piston device which reduces the line pressure by a ratio of 4:1. System Pressure Gauges and Recorders are therefore calibrated at ¼ the line pressure. The Debooster external configurations are based on 2" Buttweld Sub and Wing Nut Unions. The Debooster Cylinder replaces the Union Male Sub. The Union Wing Nut is used; the buttweld Female Sub is optionally available. A fluid Separator replaces the Union Seal Ring. Specifications: Working Pressure: 15,000 PSI / 1,000 Kg/Sq Cm / 100 Mpa Accuracy: Debooster ±0.5% FSV, system ±2.0% FSV Pressure Reduction Ratio: 4.07:1 Separator Diaphragm: Viton Maximum Hose Length: 100 ft/30 M Recommended Hose: SAE 100R2 Type A or Type B, SAE 100R10 or SAE 100R11 Operating Temperature: -37 to 65ºC (-35 to 150ºF)
