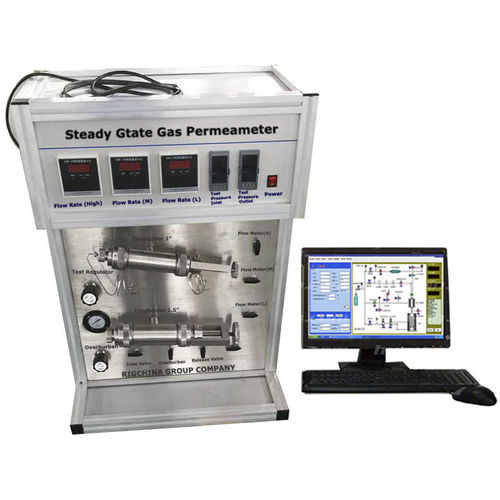

Permeameter HKR-6

The Model HKR-6 Gas Permeameter measures sample permeability to gas (air, nitrogen or helium) by the steady-state method. The unit is connected to a computer for automated data acquisition and control. The Model HKR-6 performs all data calculations for a direct reading of permeability. The computer also insures stable flow conditions through statistical analysis of the pressures and flow rates measured. Permeability can be measured on plug samples from 10 D, depending on sample size. Even horizontal permeability on full diameter samples can be measured with the Model HKR-6 permeameter. The holder for 1 inch (2.54 cm) diameter core samples up to 4 inches (10.16 cm) long. A 1.5 inch model can also be mounted on the console. Most coreholders can be utilized with the Model HKR-6 Auto steady-state gas permeameter Computer with Rigchina Systems proprietary data acquisition and control software Permeability measurements on plug size sample from 10 D Measures gas permeability by steady-state method Can be utilized with most coreholders Permeability Measurement Range: 0.001md to 10,000md. SPECIFICATIONS: Permeability Range: 0.01md to 10 darcy Flow pressure:0 to 100 psig Gas flow rate:0 - 1000 cc/min Pressure transducer accuracy: 0.1% FS @ 4 to 50 psi and 0.15% FS @ 0 to 4 psi. Flow meter accuracy: Better than 1% Nitrogen supply: 100 psi Power: 220 VAC, 50 or 60 Hz Scope of Supply: The Model HKR-6 Auto gas permeameter operating software CD
