3-axle trailer L

for vehiclesmonocoque

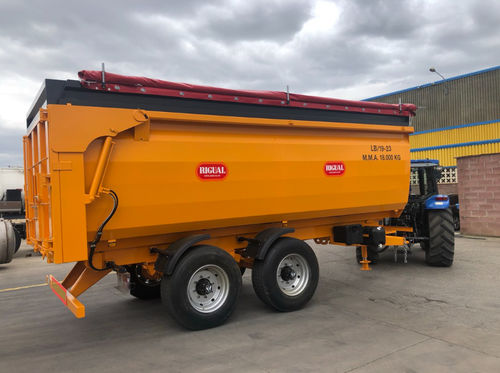

Our SERIE L monocoque dumper trailers have been designed with a body that is lighter, but very strong and reliable. The reduced tare increases the load capacity of the unit. Another important feature is the rear door, with hydraulic upwards opening, that can also be opened manually to the side. AVAILABLE MODELS AND TECHNICAL CHARACTERISTICS Main product specifications Product density: Wheat: 800kg/m3 Barley: 650kg/m3 Machine harvested grapes: 900kg/m3 Product density: Wheat: 800kg/m3 Barley: 650kg/m3 Corn: 800kg/m3 Machine harvested grapes: 900Kg/m3 Chassis Chassis built in structural steel of tubular profile with a high safety factor. Low profile chassis to reduce total height. Tipper body Strong & light tipper body. Reinforced with side bends. Optional top extensions. Light and easy to install. Top reinforcement bend also educes product spillage. Front ladder and internal steps. Door Rear dumper type door with central unloading porthole. Finishing Shot blasting, electrostatic paint, oven dried. Stainless steel. Volumes from 7 to 13m3. Box with the possibility of a wheel arch. Inner reinforcement fold in breakwater mode. Dumper tailgate with central hatch. Mechanical support foot. Volumes from 16 to 30.5m3. The widest chassis on the market: manufactured at maximum width (1.05m) for maximum stability and maximum axle reinforcement. Multifunctional rear door with hydraulic and manual side opening with central unloading door Suspension on leaf spring drawbar with adjustable height. Hydraulic support foot with pump. Chassis width 1050. In tamdem bathtubs fixed axles in tridem models 2 self-steering plus one fixed axle.
