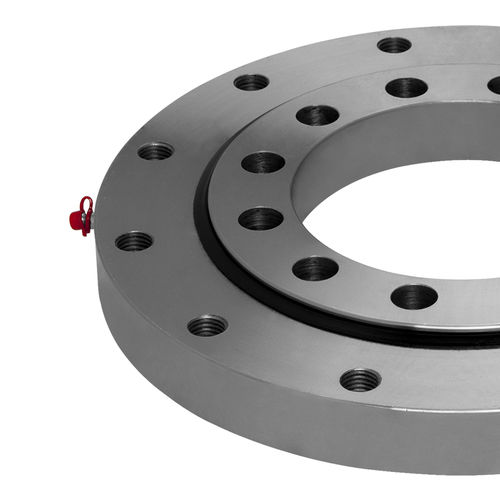

Slewing ring without teeth CZT
ball bearingsingle-rowdouble-row

Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row - image - 2
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row - image - 3
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row - image - 4
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row - image - 5
Slewing ring without teeth - CZT - RIMA SPA - ball bearing / single-row / double-row - image - 6
Add to favorites
Compare this product


Characteristics

Teeth
without teeth
Rolling element
ball bearing
Geometry
single-row, double-row
Other characteristics
axial
Inner diameter

Min.: 140 mm
(5.51 in)

Max.: 1,356 mm
(53.39 in)

Outer diameter

Min.: 300 mm
(11.811 in)

Max.: 1,600 mm
(62.992 in)

Width

Min.: 36 mm
(1.417 in)

Max.: 102 mm
(4.016 in)

Description

Ungeared Ungeared standard slewing rings with single or double row, with or without flange and with external diameter from a minimum of 300 mm to a maximum of 1600 mm. CZT Series Ungeared slewing ring with Z profile CZP Series Ungeared slewing ring with Z profile UND Series Ungeared slewing ring 2UND Series Ungeared double row slewing ring CSD Series Ungeared slewing ring 2SD Series Ungeared double row slewing ring
