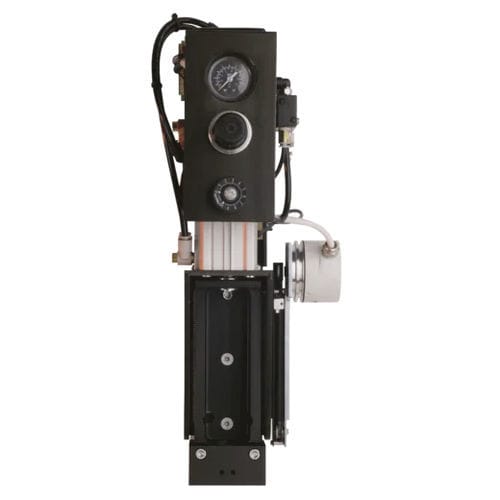

Linear actuator SV35-100pneumaticelectricdouble-acting
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric, pneumatic
- Configuration
- double-acting
- Other characteristics
- compact, small, double, large, oscillating
- Stroke
100 mm
(3.937 in)- Force
745 N
Description
The special actuator SV35-100/50 is suitable for welding operations of thermoplastic parts from small to large size als well as for punching textiles.
Configurable with RDG, SDG, AGM and ADG generators as well as with an external controller
Travel measurement and trigger box optionally available
Designed for the assembly into special purpose machines
Compact construction
Operating frequency - 35 kHz
Drive - Pneumatic, double acting cylinder
Weight - 4 kg without oscillator system
Options - Tavel measurement Trigger box
Compatible generators - ADG35-A, AGM35, RDG35, SDG35
Catalogs
SV35-100 / SV35-50
2 Pages
