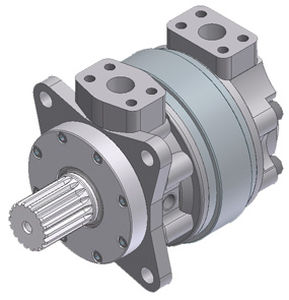

Gear hydraulic motor 37 seriesfixed-displacementhigh-pressure
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Other characteristics
- fixed-displacement, high-pressure
- Pressure
Min.: 4,500 psi
Max.: 5,000 psi
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,100 rpm
(6,911.5 rad.min-1)- Displacement
Min.: 197 cm³
(6.66 US fl oz)Max.: 606 cm³
(20.49 US fl oz)
Description
Code 62 ports - 4500 PSI continuous, 5000 PSI intermittant.
Six fixed displacement motors ranging from 12 in3 to 37 in3.
Same starting, stall, and low speed torque.
Two-speed operation on 4-port with some external valving.
Speed to 1,100 RPM.
Up to 300 HP output.
Tapered roller bearings with increased radial and axial capacity.
Larger diameter output shaft.
Single stack motor weighs 112 lbs.
Double stack motor weighs 149 lbs.
4-port motor weighs 187 lbs.
