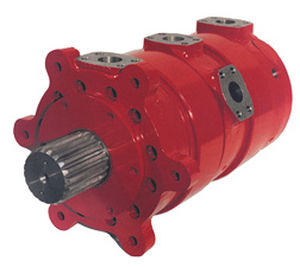

Axial piston hydraulic motor 125 seriesfixed-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Other characteristics
- fixed-displacement
- Rotational speed
Max.: 350 rpm
(2,199.11 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Displacement
Max.: 2,048 cm³
(69.25 US fl oz)Min.: 983 cm³
(33.24 US fl oz)
Description
A variety of fixed displacement motors ranging from 60 in3 to 125 in3.
Same starting, stall, and low speed torque.
Speed to 350 RPM continuous.
Up to 375 HP continuous.
10" diameter x 23" long package.
Two speed operation with some external valving.
4-Port motor weighs 380 lbs.
