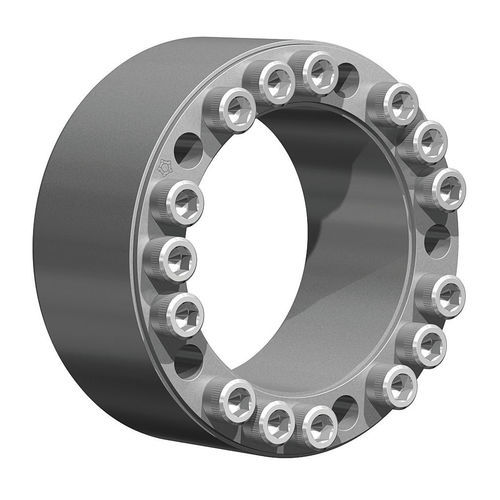

Locking device coupling RfN 7014

transmissionshaftlarge

This locking device, dual tapered similar the 7012 type, is designed to transmit extremely high torques. Unlike the 7012 style, the 7014 device offers good centering ability due to it’s relatively long design, making a pre-centering hub section unnecessary. It’s design also provides for a different inside diameter to outside diameter ration, thereby not interchangeable with the other RINGFEDER® types. Available in sizes from 70 to 300 mm. Product Characteristics Large transmittable peripheral forces – due to the long, flat cones it is possible to transmit maximum torques and axial forces with one RfN 7014 Locking Assembly. Maximum reliability – due to the flat cones and the relatively wide construction (large guide lengths) the Locking Assemblies RfN 7014 centre themselves. During installation the Locking Assembly, shaft and hub remain in position to one another. The shaft and hub are loaded by pressure, providing additional safety compared to 3-part versions. Example applications: Heavy pulleys Construction of heavy machinery Coup­lings Cable sheaves Mounting of Locking Assembly The values for T, Fax, pW and pN apply to Locking Assemblies installed in oiled condition
