Locking device coupling RfN 7012.2
discconveyorflange

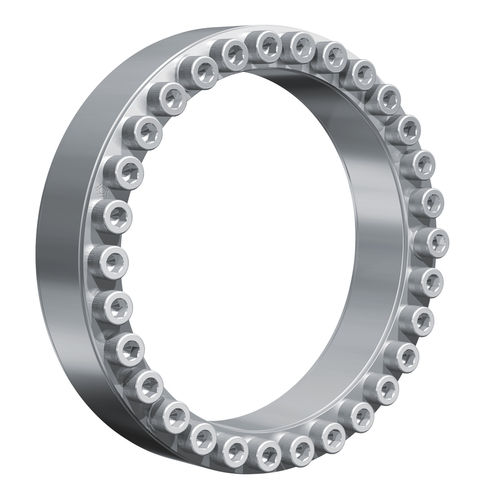

Locking device coupling - RfN 7012.2 - RINGFEDER POWER TRANSMISSION GMBH - disc / conveyor / flange
Locking device coupling - RfN 7012.2 - RINGFEDER POWER TRANSMISSION GMBH - disc / conveyor / flange
Locking device coupling - RfN 7012.2 - RINGFEDER POWER TRANSMISSION GMBH - disc / conveyor / flange - image - 2
Add to favorites
Compare this product


Characteristics

Type
locking device, disc
Product applications
conveyor
Installation system
flange
Torque

Min.: 19,455 Nm
(14,349.2716 ft.lb)

Max.: 1,359,784 Nm
(1,002,925.2096 ft.lb)

Description

The new Locking Assembly series RINGFEDER® RfN 7012.2 is specially designed to fulfil the requirements of constantly increasing bending moments for conveyor pulleys. The challenge was to develop a product with the same dimensions as the standard RINGFEDER® RfN 7012 to fit into existing end discs – Attention: yield point of end disc has to be checked – so that also material handling equipment at hand can be upgraded. At the same time the Locking Assembly should carry a multiple of the bending moments of the standard RINGFEDER® RfN 7012. NEW The new Locking Assembly series RINGFEDER® RfN 7012.2 is specially designed to fulfil the requirements of constantly increasing bending moments for conveyor pulleys. The challenge was to develop a product with the same dimensions as the standard RINGFEDER® RfN 7012 to fit into existing end discs – yield point of end disc has to be checked – so that also material handling equipment at hand can be upgraded. At the same time the Locking Assembly should carry a multiple of the bending moments of the standard RINGFEDER® RfN 7012. To comply with these requirements, we have collected the experiences of our customers and our knowledges of supplying to the market of heavy industry for more than 90 years. The result is the brand new RINGFEDER® RfN 7012.2. A special bolt for type RfN 7012.2 has been developed by RINGFEDER® for the increased requirements occurring when subject to loading by bending moments.
