Housed freewheel FHD series
rolleroverrunning clutch

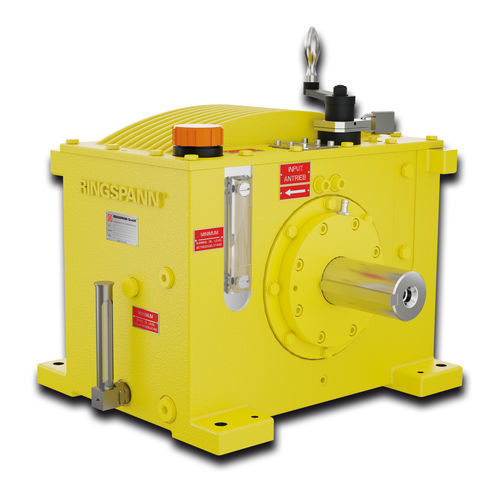

Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch
Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch
Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch - image - 2
Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch - image - 3
Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch - image - 4
Housed freewheel - FHD series - RINGSPANN - roller / overrunning clutch - image - 5
Add to favorites
Compare this product


Characteristics

Technology
roller
Construction
housed
Applications
overrunning clutch
Torque

Min.: 1,356 Nm
(1,000.1343 ft.lb)

Max.: 24,405 Nm
(18,000.2043 ft.lb)

Diameter

Min.: 412.5 mm
(16.24 in)

Max.: 660 mm
(25.98 in)

Rotational speed

Min.: 2,300 rpm
(14,451.33 rad.min-1)

Max.: 5,600 rpm
(35,185.84 rad.min-1)

Description

with mechanical separating function for heavy duty and continuous operation Application as Overrunning Clutch for multi-motor drives in which a drive is automatically disengaged when it is no longer supplying power. Features Housing Freewheels FHD with hydrodynamic roller lift-off are typically used in cases where an assembly can be driven from two or more motors or turbines at the same or similar high speed. They allow a continuous plant operation in the event that one of the energy sources or a drive line fails as well as energy saving in the case of partial load operation. For safe system maintenance, the Housing Freewheels FHD are equipped with a mechanical separation function to decouple the input drive from the output drive train. The Housing Freewheels FHD are completely enclosed freewheels for stationary arrangement with input and output shaft.

Catalogs

No catalogs are available for this product.

See all of RINGSPANN‘s catalogs
