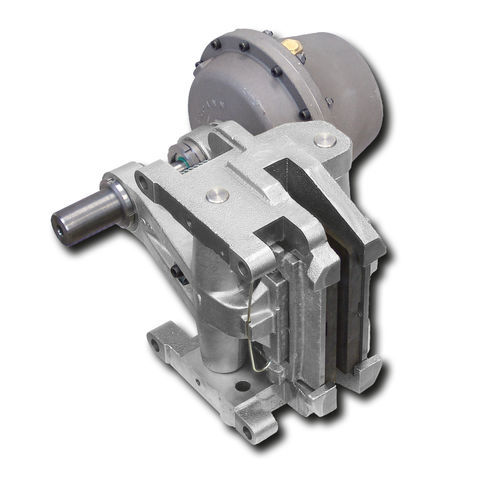

Disc brake caliper DU 060 FPM seriesspring activatedwith pneumatic release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- spring activated, with pneumatic release
- Braking force
Max.: 65,000 N
Min.: 24,000 N
Description
spring activated – pneumatically released
Features - Code
Brake Caliper - D
Mounting to the machine, can be made either parallel or at right angles to the brake disc - U
Frame size 060 - 060
Spring activated - F
Pneumatically released - P
Manual adjustment to accommodate friction block wear - M
Pressure piston 111, 122, 130, 135, 140, 150, 155 or 160 are available for selection - 111
to
160
Thruster mounted right or left available - R
L
Thickness of brake disc 25 mm or 40 mm - 25
40
