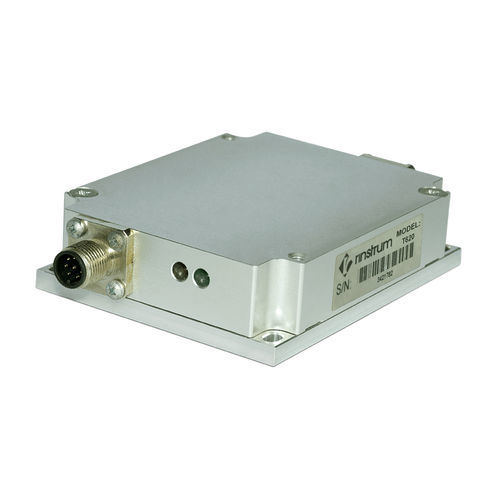

Digital weight transmitter T series

waterproof

Key Highlights & Features •8-way cat5 cables of POE Standard connections. •Digital weigh transmission using standard RS485 serial communication. •M12 waterproof connectors for outdoor. •RJ45 connectors for Indoor. •Supports ring, tree, star and custom network topologies. •Up to 31 Devices can be connected. The T6xx modules are Digital weight transmitters that use the rinWIRE interface which implements RS485 serial communication protocol to connect devices in a ring network. Protocol uses ASCII characters with a single master POLL / RESPONSE message structure. Each sensor regenerates the communication signals so there is no need for network termination devices to balance the network as with standard RS485. Digital weight transmitter Indoor: •T610 modules are designed for indoor use. ♦RJ45 connectors are used for connections. Outdoor: •T620 modules are designed for outdoor use. •M12 connectors are used for connections. •Rugged potted metal housing. •IP68 rated. RinWire interface converter •T105 Protocol Board to convert Standard RS232 to RS485. •With external power supply. •Reverse Polarity and short circuit protected.
