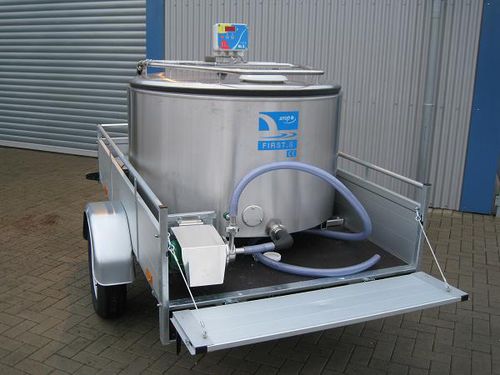

Cooling tank First RS series

for milkpolyurethane foamstainless steel

Transportable tanks with evaporator surface cooling. Transportable tanks (550 to 1500 litres — milk cooling with evaporator surface cooling) The milk container has two walls which have a vertical cylindrical shape and are manufactured out of stainless steel AISI 304. The tank is fully insulated. The insulation (case and bottom) is made out of high-density polyurethane foam (no CFC). Outlet valve DN50 with DIN thread. Trailer: Hapert trailer with road licence Construction out of galvanised steel. Cooling systems: Refrigeration unit Regulation of expansion valve refrigerant. Electrical equipment: - Control (Off, On, colder, warmer) - Regulation and the readings of the milk temperature, - Management and control of the cooling, - Protection against voltage fluctuations. Standard power supply: 400 V / 3P + N / 50Hz. Options: Pump for the milk, Norms: Corresponding to the European Directive on road licencing. Milk tubs, version with refrigerant evaporator bottom with two walls — foam-insulated Motor for stirrer: 230 V / 50 Hz Drainage for milk NW 50 various possibilities for assembling (trailer, tractor hydraulic,...) All milk cooling tubs are designed for manual cleaning. Assembled compressor, especially well suited for mobile use Stirrer is assembled on top, also for small milk quantities. Everything is ready to plug in (no costs for assembly any more)
