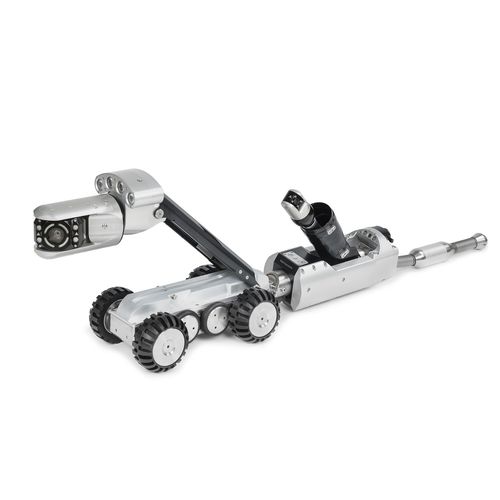

Inspection UGV RiSat Fluid

monitoring

Water jet and inspect in one operation. With the RiSat Fluid satellite system, this is possible from the main sewer for branched connecting sewers as well as land drainage systems (GEA). You can use the satellite system as a built-in module in an inspection vehicle or in a combination vehicle equipped with high-pressure water jetting technology. • Operating range DN 200 - DN 800 (ID 8" - ID 32") • Easy flushing of the satellite camera using the water jet principle • One camera for monitoring the return drive • Various pipe extensions can be mounted on the quiver using the quick-change system • Safety bracket with quick-release fastener for securing the satellite camera • Rapid installation with only two screw bolts on carriage FW 150 L freely hanging • Robust joint between crawler and positioning unit • Rotation function with slip clutch and angle indicator • Lifting function of the quiver also with slip clutch and angle indicator • Two cameras on the satellite system for controlling and correct positioning of the quiver and one camera for monitoring the return drive • Each camera with its own adjustable lighting unit • Lowering device with protective bar for the front camera for safe insertion into the main sewer
