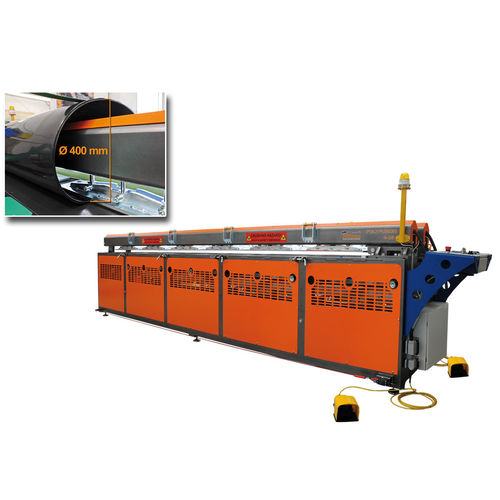

Butt welding machine POLYFUSION 4-30

automaticfor plasticsthermoplastic sheet

POLYFUSION 4-30 is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF. POLYFUSION 4-30, besides operating to weld horizontally, allow you to perform different types of welds as circular and 90° thanks to special accessories available on request. The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process. The welding process setting is arranged with temperature and pressure parameters in compliance with D.V.S. 2207 directives. Otherwise according to the user’s needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld. Each welding cycle is automatically memorized (4000 welding cycles) and it’s possible to save it and transfer the PDF files thanks to an USB storage device. Possibility to pre-set 15 customized. The butt fusion machine is also able to weld twin-wall PE and PP sheets. Weldable plastic thickness: 3 ÷ 30 mm the indicated maximum thickness can be welded with materials that require a maximum welding pressure not higher than 0.17 N/mm2; Max. weldable length: 4000 mm, with the possibility to weld simultaneously 3 sheets with maximum side of 1300 mm. Welding types: horizontal (standard composition); 90 degrees and circular (on request)
