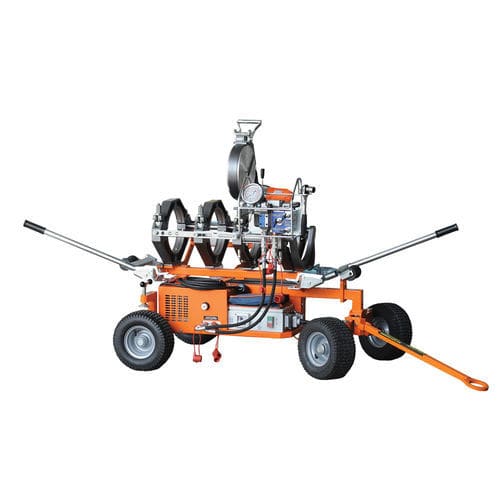

Butt welding machine DELTA 250 TRAILER

manualfor pipe230V single phase

DELTA 250 TRAILER MANUAL: self-aligning hydraulic butt fusion machine, suitable for welding underpressure pipes for water, gas and other fluids up to Ø 250 mm (8" DIPS). Welds according to the International standards ISO 21307 HIGH PRESSURE / ASTM F2620. DELTA 250 TRAILER MANUAL is able to weld fittings like elbows, tees, Y-branches and flanges necks. Available in the 110 V and 230 V versions. Includes: - A trailer-mounted machine body, easily removable from the trolley - Fast-locking adapters system SMARTLocK thanks to which is possible to change adapters in few seconds - An on-board electric milling cutter with a safety microswitch - An extractable heating plate Teflon-coated (PTFE) equipped with an independent thermometer - Two rollers - A heating plate support which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched Patent by Ritmo EP1743741 B1 - US 7334785 ON REQUEST (ACCESSORIES) - Clamps’ inserts from Ø 75 to 225 mm; 2" ÷ 8" IPS; 3" ÷ 8 " DIPS - Tool to weld flanges’ necks/ Stub-end holder
