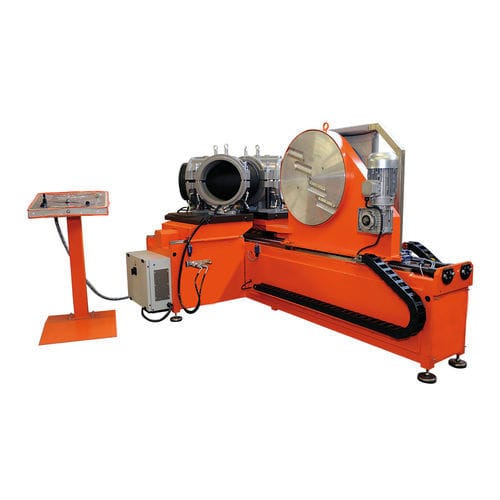

Butt welding machine ALFA 400 CTB

manual400V three-phasehydraulic

ALFA 400 CTB is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows Ø 110 ÷ 400 mm (4" IPS ÷ 16" IPS) Tees - Crosses - Wyes Ø 110 ÷ 355 mm (4" IPS ÷ 14" IPS) Elbows and Wyes (Y) jaws opening/closing and locking movements are controlled hydraulically Tees/Crosses jaws opening/closing movements are manual The ALFA 400 CTB can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws. Composed of: - A machine body with two hydraulically controlled carriages; a control panel that features the Easy Life system, thanks to which it is possible to carry out a whole welding cycle in a simple, intuitive and repeatable way, so that the operator’s interference would be reduced to the minimum. An built-in memory allows the machine to store 400 welding cycles (including the set diameters and SDR). It is possible to transfer the welding data to a PC through a serial port (USB adaptor connector available) and data-management software. A printer can be connected to the serial port, to get a welding report at the end of each welding cycle - A Teflon-coated heating plate with hydraulic movement (in / out) on spherical bearings guides - A milling cutter with hydraulic movement (in/out) on spherical bearings guides, operated by an electrical engine, provided with eight steel blades - an upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it’s necessary to use high pressures STANDARD COMPOSITION - Machine body with control panel EASY LIFE - Heating plate - Milling cutter - Upper cylinder and service tools
