Electrofusion welding machine OMEGA seriessemi-automaticfor plastic pipe230V single phase
Add to favorites
Compare this product
Characteristics
- Technique
- electrofusion
- Operational mode
- semi-automatic
- Applications
- for plastic pipe
- Power supply
- 230V single phase
- Other characteristics
- hydraulic
- Power
6,500 W
Description

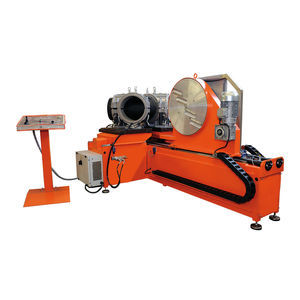

OMEGA 400 – 315 and OMEGA 630 - 315 are a saddle fusion machines for workshop use.
Perfect to manufacture special parts, such as reduced tees and crosses for water pipeline used in drainage/sewerage applications.
Available a model OMEGA IPS (24" IPS - 12" IPS)
STANDARD COMPOSITION:
- Machine body with manual carriage for socket centring
- Hydraulic jaws for locking pipe & branches
- Side support for branches
- Quick release inserts - EASY LIFE control panel: allows a simple-easy-repeatable welding cycle, reducing the necessity of operator’s intervention
- A built-in memory records the welding cycles; the USB port and the software allow the transfer of data to a PC
- Hydraulic movement of heating plate that can host male/female sockets with heating plate detaching device
INTEGRATIVE SYSTEMS RADIUS 40-315 radial cutting band saw machine
Materials HDPE/PP
Working range - Omega 400-315
Ø 400 ÷ 315 mm
Omega 630-315
Ø 630 ÷ 315 mm
Omega IPS
Ø 24" IPS ÷ 12" IPS
Power supply 230 V Single Phase 50/60 Hz
Working Temperature 180° ÷ 280° C
Total absorbed power 6500 W
Weight 735 Kg
Dimension 1955 x 2050 x 1650 mm
