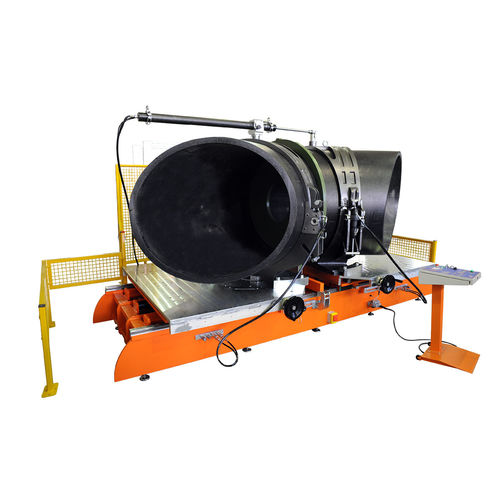

Butt welding machine ALFA 1200

automaticfor plastic pipe400V three-phase

ALFA 1200 is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws. Elbows Ø 630 ÷ 1200 mm Tees - Crosses - Wyes Ø 630 ÷ 1000 mm Composed of: - A machine body with two hydraulically controlled carriages - A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the report PDF via USB slot - A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides - A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine - An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures. STANDARD COMPOSITION - Machine body with control panel CNC - Elbows jaws Ø 1200 complete with inserts from Ø 630 to Ø 1000 mm - Heating plate - Milling cutter - Upper cylinder and service tools ON REQUEST (ACCESSORIES) - Wyes - Tees - crosses jaws Ø 1000 mm inserts from Ø 630 to Ø 900 mm
