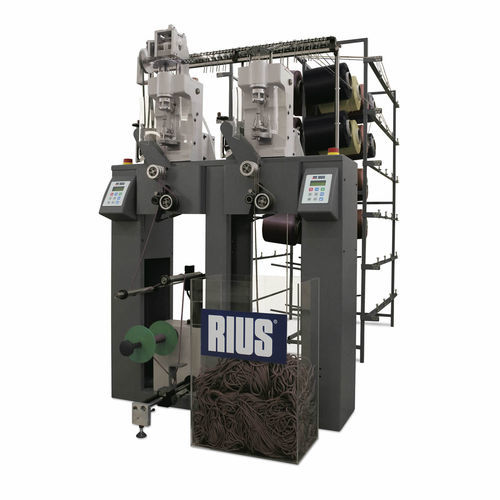

Rope braiding machine MC

High speed knit braiding machine of versatile use for producing ropes, elastic or rigid cords, shoelaces, revetments, ornaments, sports applications, etc. Interchangeable cylinders of 4 / 6 / 8 / 10 / 12 / 14 / 16 needles. Cylinder diameters from 1 up to 13 mm (Standard). Cylinder diameters from 1 up to 15 mm (According Sample). • Two independent heads and thread guides. • Possibility to work from all kind of yarns. • Electronic stop motion in case of yarn breakage. • · Runproof product. • Core can be either rigid or elastic (see options). • High versatility of crossing adjustment. • Direct feeding from cones or bobbins. • Density regulation system. • Different creels and pitch are available in function of samples to produce. • Cylinders and thread guide sets are available. • Positive rubber feeder. • Take off on beam or bobbin by adjustable traverse motion. • Thermosetting device.
