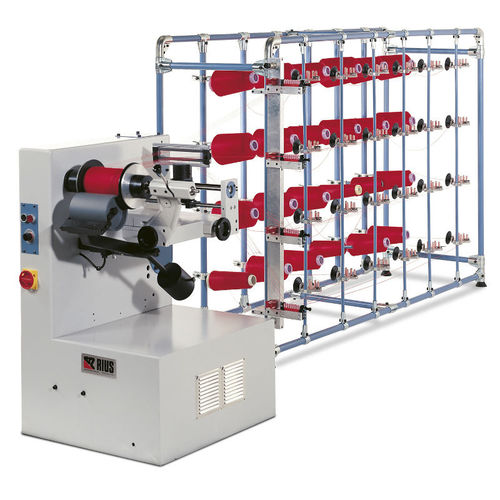

Direct warping machine UC-300

• Direct warping machine for narrow fabric and selvedges beams. • Suitable for the warping of all natural or synthetic yarns, as well as their blends in all their counts. • Working from any type of creel. • Maximum beam external width: 300 mm. • Maximum flange Diameter: 300 mm. • Maximum warping speed: 500 Meters / minute (depending on quality and type of yarn to be used) • Reed traverse motion for the adjustment of the yarn to the beam (allowing to warp in rope form or in parallel along the beam width). • Linearly constant adjustable warping speed by electronic frequency inverter. • Straight inlet reed. Adjustable traverse motion. • The right head is fixed and the left one is mechanically moved. • Dispositivo de presión del plegador mediante rodillo de presión, permitiendo un urdido final uniforme. • Beam pressure device, allowing uniform final warping with adjustable pressure on beam. • PImmediate stop of machine once selected diameter reached. • Security stop of the machine. • Security and protection system under EC regulation.
